Applications / Automatic pallet lines
Nails for Automatic Pallet Nailing Lines
Specify the nail and coil for the machine you already use. Start with its reel support, feed path and mounted nailing heads; then check the pallet joint and trial a finished coil on the actual line.
Send us: machine model, current reel photos, nail drawing or sample, and your pallet joint.
Reel + feed
Check the actual equipment interface
3,000 / coil
Typical Jumbo count; confirm final reel
400 cartons
Usual Jumbo-coil MOQ
THE FOUR CHECKS THAT MATTER
Match the complete feeding system
Automatic pallet lines do not all accept the same coil. A nominal nail size is only one part of the specification. Compare the reel, feed route, mounted nailing head and wood joint as one system.
01 / MACHINE
Identify the line
Record the machine builder and full line model, nailing station and current feeder arrangement. Send the machine manual or reel drawing if available.
02 / REEL
Measure the reel interface
Confirm centre support, outer diameter, coil height, clearance and orientation against the equipment drawing. A photo of the installed reel helps us understand the arrangement.
03 / NAIL
Check the nail and wire
Confirm nominal diameter and length, head, point, shank, collation angle, wire positions and feed direction against the mounted nailing head and existing sample.
04 / TRIAL
Run the actual pallet joint
Trial the finished coil on your line and timber. Record feeding, drive depth, bent nails, splitting and joint acceptance before fixing the bulk specification.

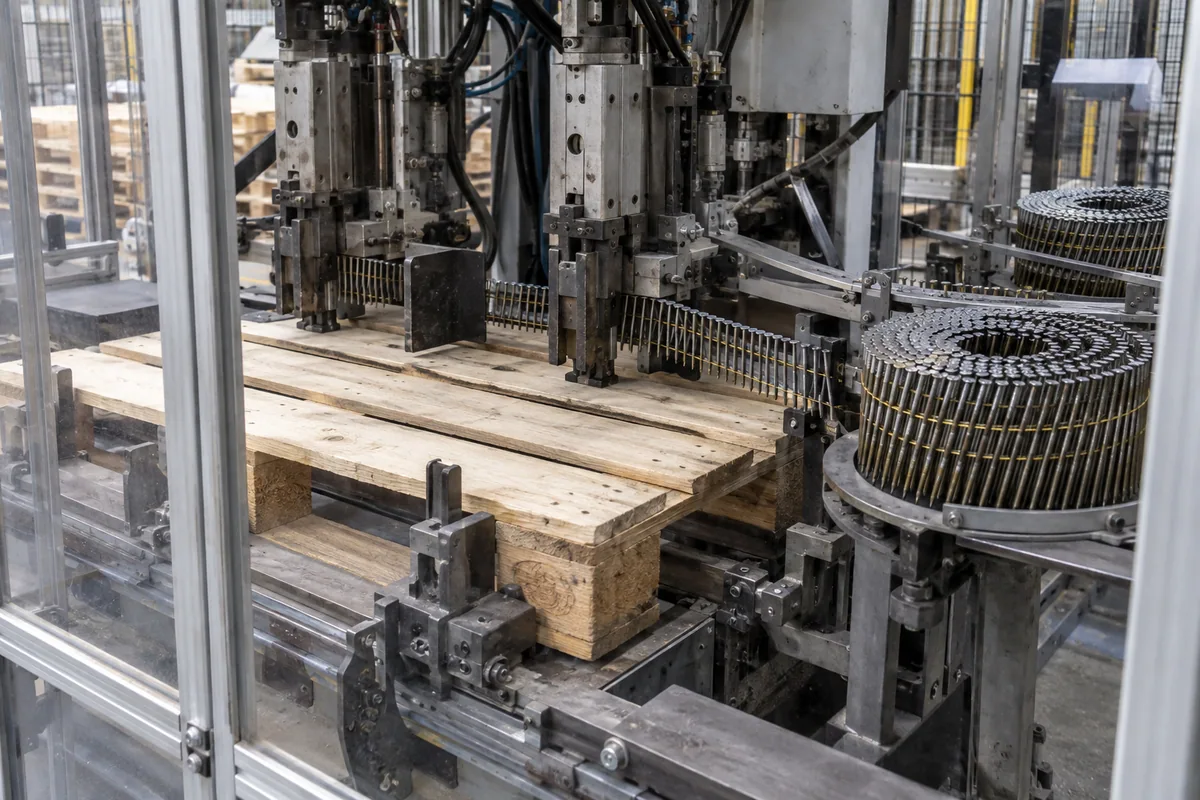

REEL SUPPORT AND NAILING STATION
Verify the reel support and feed path
Check the complete interface

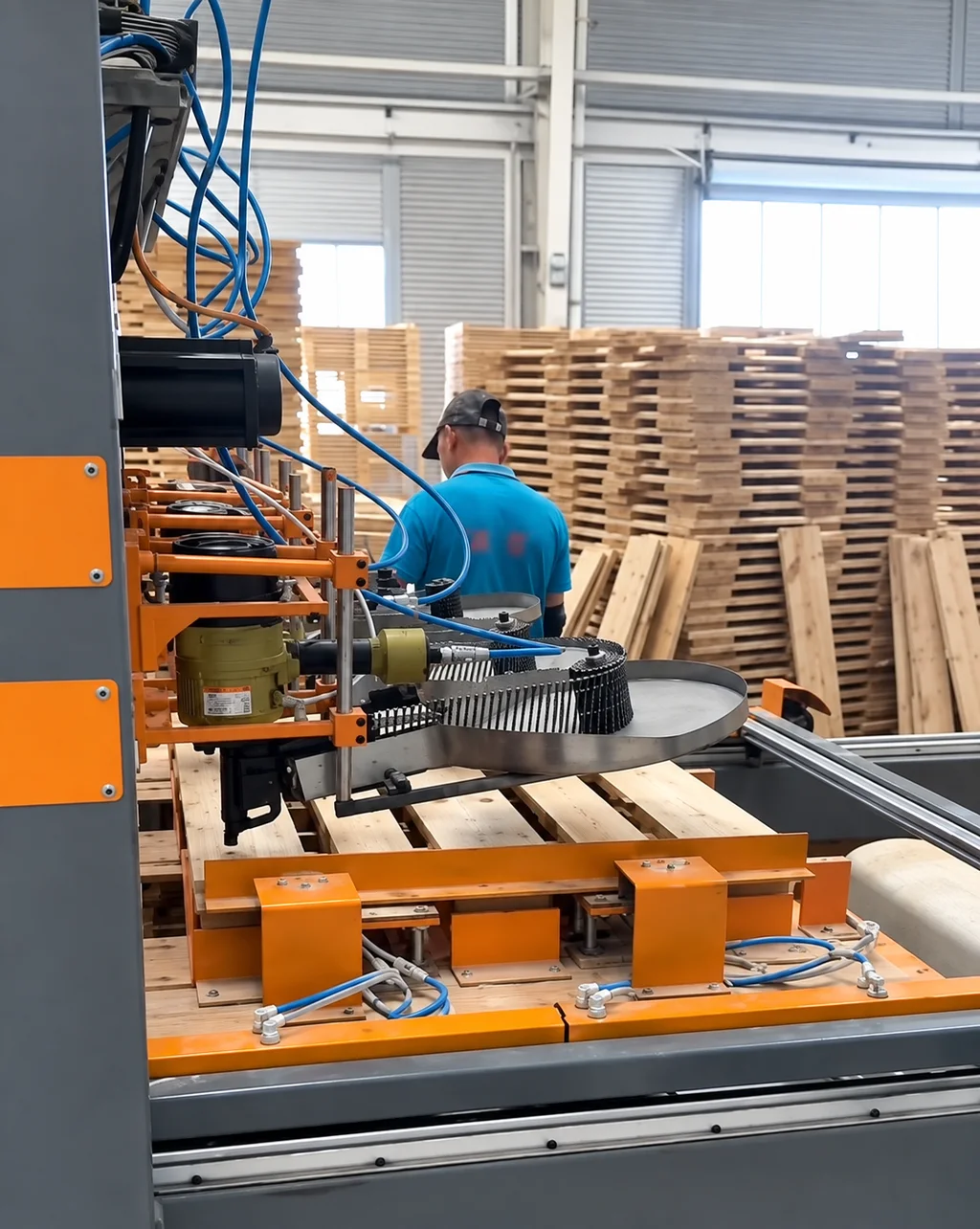

The feeder must support and unwind the reel while the nailing head accepts the collated strip. Check the centre support and available space, the route into each head, and the nail and wire geometry in the machine documentation. Confirm final fit with the actual reel and line.
For a useful comparison: photograph the installed reel from above and the side, the centre mount, the path to the nailing head, and the label or drawing of the current nail. Include all nailing stations if they differ.
CHOOSE THE FEED FORMAT
Standard or Jumbo depends on the feeder
The nail diameter, length, point and shank can be similar in standard and Jumbo coils. The key difference here is the supported coil format. A longer nail does not automatically make a coil Jumbo.
Standard 15° wire collated coil

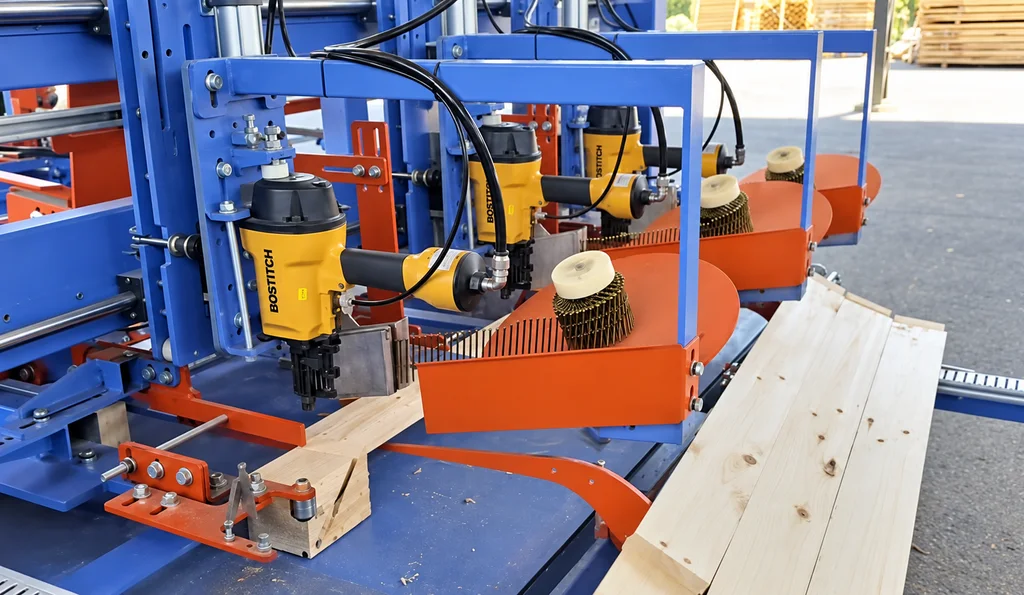

Use the standard product specification where the mounted nailer and its magazine accept that coil. Confirm nail dimensions, nails per coil and the full tool model.
Usual MOQ: 200 cartons per size.

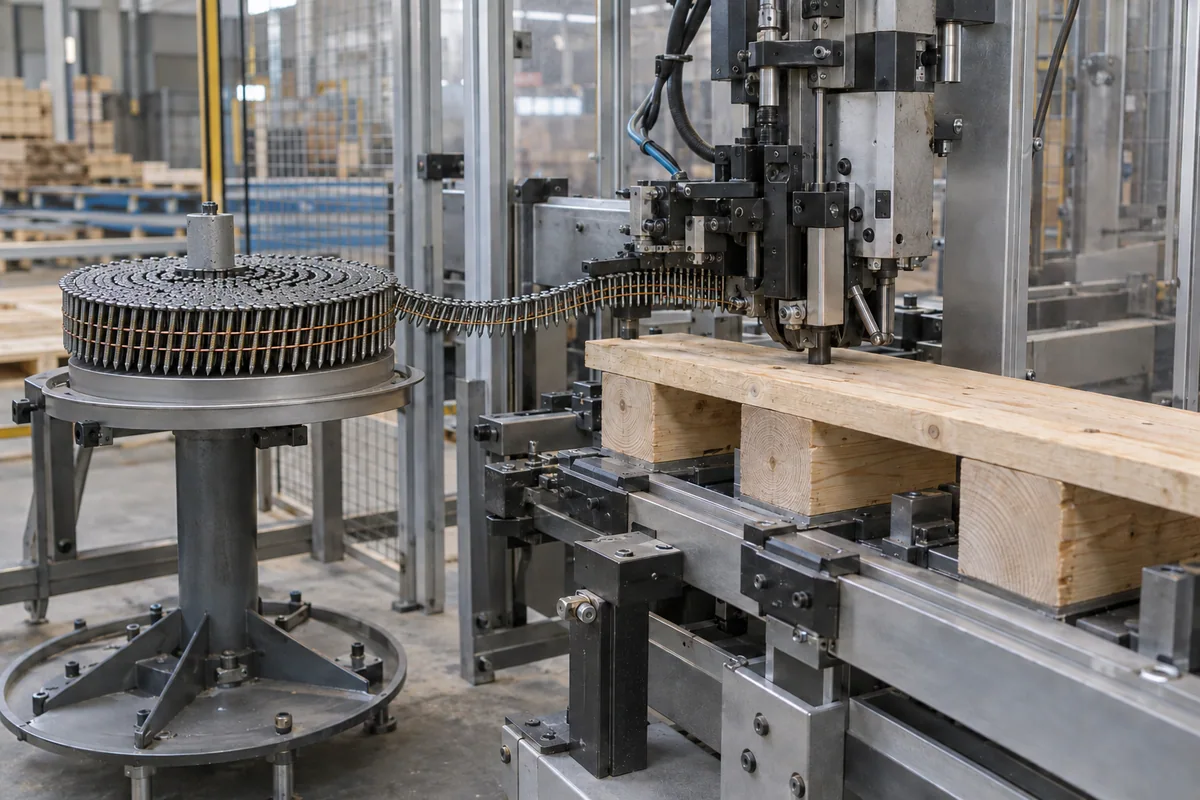

Jumbo coil for supported external feed
Consider the supported large reel when the pallet line is designed for it. The typical pack is 3,000 nails per coil and 3 coils per carton; confirm the exact reel and pack before ordering.
MOQ: 400 cartons.
Compare all coil nail formats and nails-per-coil and carton counts. For mounted handheld-style CN nailers, check the CN nailer size ranges against the exact tool manual.
TEST BEFORE THE BULK ORDER
Prove the coil in the actual cycle
Feed and drive checks
Run a coil through the production route with the real pallet stock. Observe whether the wire strip advances cleanly, the reel unwinds evenly, and nails drive to the required depth. Record any snag, missed feed, bent nail or broken collation with the station and coil position where it occurred.
Check the finished joint
Board thickness, wood condition and the assembly pattern affect the result. Compare Q195 and Q235 finished nails and smooth, ring or screw shanks on the actual timber if these options are being considered. Agree acceptance criteria for penetration, splitting and holding with the pallet designer.
For board, stringer, block and packaging-joint decisions, see pallet and wooden packaging nail selection.
A COMPLETE REQUEST GETS A USEFUL ANSWER
Send the machine and coil together
Include these items with your inquiry so we can discuss a trial specification and commercial pack:
- Machine builder, line model and nailing-head details
- Current reel, core and feed-path photos or drawings
- Current nail sample or nominal diameter, length, head, point, shank and collation details
- Pallet drawing, timber description and joint location
- Required nails per coil, cartons, destination and trial quantity
ON-LINE QUESTIONS
What to check when production changes
Will any 3,000-nail reel fit our feeder?
No universal fit follows from the count. Compare the supported core, coil outer diameter and height, reel clearance, unwind direction and nail strip path with the machine documentation, then trial the final reel.
What if the welding wire separates during feeding?
Stop and follow the machine maker’s clearing procedure. Record the exact station and position in the coil, and inspect the reel path, handling damage and wire attachment on a retained sample. Share the batch and photos so the cause can be checked rather than assumed.
What if the line skips nails or jams?
Compare the current and replacement coil geometry, nail and wire positions, head and feed settings, and the condition of the nailing head. Repeat a controlled run with the exact line model and record where the interruption begins.
Are longer pallet nails automatically Jumbo?
No. Jumbo describes the large supported reel format, not a separate nail-length family. Some long nails may be impractical in a large reel, but there is no confirmed universal length cutoff. Confirm the requested length against the actual reel and line.
Should harder timber always use Q235?
A steel grade by itself does not settle the fastening result. Compare finished Q195 and Q235 nails in the actual timber and joint, checking drive quality, bending, splitting and holding. Select from that test and the agreed application requirement.
Can our handheld CN nailer use the Jumbo reel?
Do not infer that from the nail size. The handheld magazine and the automatic line’s external reel support are different feed arrangements. Use the tool’s accepted coil dimensions and full model for a separate compatibility check.
READY TO COMPARE A SAMPLE
Start with your installed reel
Send its dimensions and photos with the line model, nail sample and pallet joint. We can then discuss a reel and nail configuration to trial before the final bulk specification.
