ROOFING NAILS

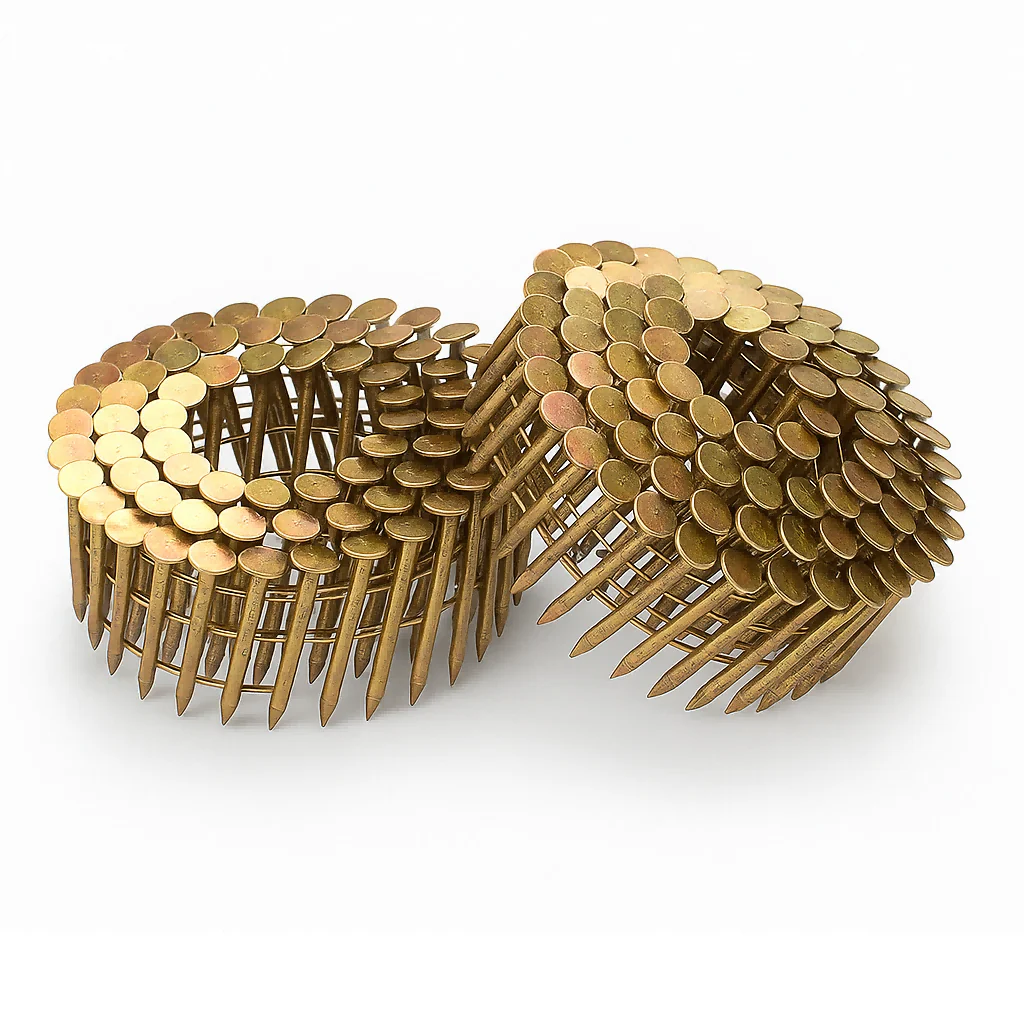

Large Head Coil Roofing Nails
Large head · Wire collated
Large-head wire-collated nails for roofing and wood fastening enquiries. Send the required dimensions, finish and nailer model for specification confirmation.

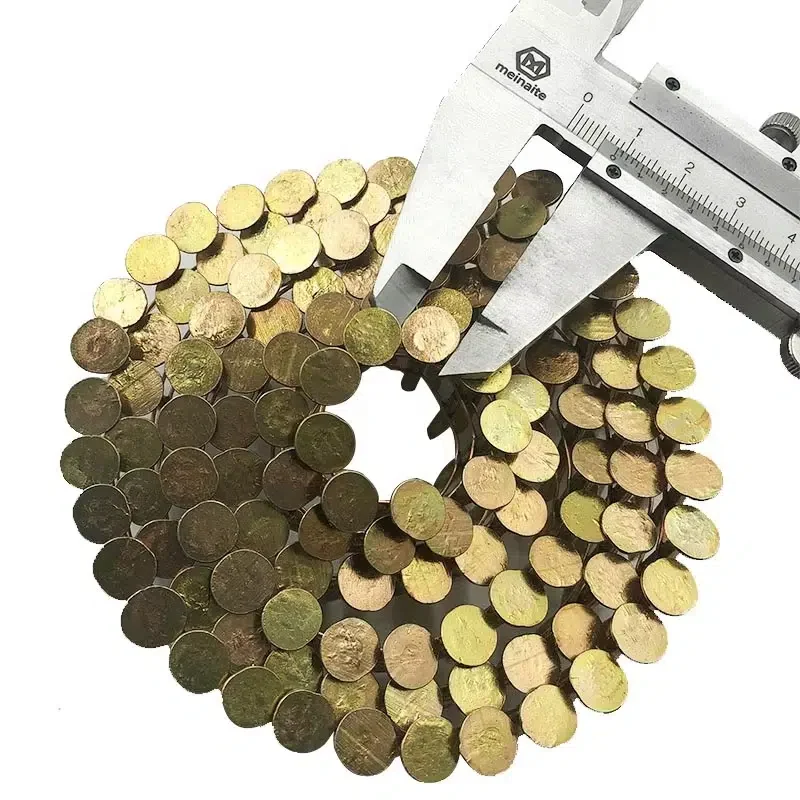

Head diameter
9.0 – 10.0 mm (0.354 – 0.394″)
Shank diameter
3.05 ± 0.1 mm (0.120 ± 0.004″)
Listed lengths
7/8" to 2"; six sizes below
Nails per coil
120 nails
Collation angle
14° – 16°
Tool type
Roofing coil nailer matched to the large head
Availability, material grade, finish and tool compatibility will be checked for the requested configuration and stated in your quotation.
Sizes and specifications
Roofing coil nail sizes
Large-head wire-collated roofing nails; not loose umbrella-head nails.
On smaller screens, swipe the table to see all columns.
Length (nominal inches)
Length (source mm)
Shank diameter
Head diameter
7/8″
22.2
3.05 ± 0.1 mm (0.120 ± 0.004″)
9.0 – 10.0 mm (0.354 – 0.394″)
1″
25.4
3.05 ± 0.1 mm (0.120 ± 0.004″)
9.0 – 10.0 mm (0.354 – 0.394″)
1-1/4″
32
3.05 ± 0.1 mm (0.120 ± 0.004″)
9.0 – 10.0 mm (0.354 – 0.394″)
1-1/2″
38
3.05 ± 0.1 mm (0.120 ± 0.004″)
9.0 – 10.0 mm (0.354 – 0.394″)
1-3/4″
44.5
3.05 ± 0.1 mm (0.120 ± 0.004″)
9.0 – 10.0 mm (0.354 – 0.394″)
2″
51
3.05 ± 0.1 mm (0.120 ± 0.004″)
9.0 – 10.0 mm (0.354 – 0.394″)
Published product references for quotation. The exact size, material, finish and packing are confirmed for your order.
Specification notes for ordering
Confirm the exact roofing nailer model, coating requirement and carton quantity. The large-head format is not a universal fit for ordinary pallet coil nailers.
DEFINE THE ORDER, NOT JUST THE FASTENER
Packing, samples and order documentation.
Material and finish references
Parameter
Reference
Material
Carbon steel AISI C1004 – C1006 or Stainless steel 304
Electrogalvanized option
Yellow-chromate electrogalvanized finish
Hot-dip galvanized reference
44 μm (0.0017″)
Mechanically galvanized reference
12 μm (0.0005″)
Coating figures are source specifications, not batch inspection results or a corrosion-life guarantee. Material and coating combinations are quoted individually.
APPLICATION EXAMPLES
Where it's used
Explore the materials, joints and workshop tasks below. Match the fastener size and tool to your own workpiece before ordering.

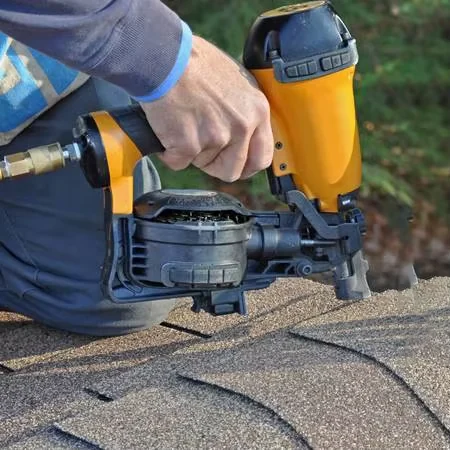

Asphalt-shingle fastening
Match large-head coil nails to the shingle specification and dedicated roofing nailer.
Ridge-cap build-up checks
Thicker ridge components may require a different nail length to achieve the specified penetration.
Shingle-and-deck sample review
Review head seating and required deck penetration on the complete roof build-up.
AI-generated application illustrations, not customer project photographs.
START WITH THE ROOF SYSTEM
Match the large head and roofing nailer.
Head
Nail length
Shank diameter
Point
Measurement guide · schematic, not to scale. Refer to the listed dimensions and an approved order drawing.
Covering → fastener → substrate → exposure
Large-head roofing coils and pallet coils have different selection requirements. Match the head geometry, shank, length, finish and coil format to the roofing nailer and roof-system instructions.
- Identify the exact roof covering and substrate.
- Follow the roof-system manufacturer’s installation requirements.
- Specify the head or washer, required penetration and corrosion environment.
- Confirm local project requirements and product documentation.
Nail geometry and coil assembly
Parameter
Reference
Head thickness
0.7 – 0.9 mm (0.028 – 0.035″)
Head alignment tolerance
Max out-of-round or off-center deviation is 1.5 mm (0.060″)
Radius under head
0.75 – 1.0 mm (0.030 – 0.039″)
Length tolerance
±1.5 mm (±0.060″)
Point
Diamond shape, 40° – 67°
Nail spacing
8.0 – 8.4 mm (0.315 – 0.331″)
Weld wire
0.7 mm diameter, tensile strength ≤ 56 KPSI
Top wire position
7.0 ± 0.5 mm (0.26 – 0.30″) from the bottom of the nail head
Bottom wire position
15.5 ± 0.5 mm (0.59 – 0.63″) from the bottom of the nail head
Coil outside diameter
Maximum 100 mm (3.94″)
Coil inside diameter
Minimum 22 mm (0.866″)
Assembly dimensions and tolerances are the published drawing reference. Confirm them against the supplied nailer and the agreed production drawing.
Choose for your workpiece and equipment
01
Check head, shank and coating together
Specify head and shank dimensions from an approved drawing, then confirm the finish and coating requirements against the roof-system instructions. Historical dimensions are not used as current ordering specifications.
02
Match the roofing nailer
Verify permitted head diameter, length, collation and coil format. A similar coil angle does not make a pallet nailer suitable for large heads.
03
Approve on the roof materials
Assess feeding and flush seating on representative shingle and deck samples. Verify required fastener documentation before approving the product for a named system.
Questions before you order
Are roofing nails and pallet coil nails interchangeable?
Their head geometry and applications differ. The roof specification and the nailer’s approved fasteners must both be satisfied.
Does a galvanized description confirm roof suitability?
No. Confirm the coating type and the roof-system or project requirement, especially for corrosive environments.
Application limits to check
- Do not substitute these for pallet coils or assume CN-series compatibility.
- Do not use an ordinary large head as a substitute for a specified underlayment cap fastener.
