HOG RINGS
C Series and CL Series Hog Rings
17–63 mm crown · Ø1.6–3.0 mm
C-shaped rings for upholstery, mattress, wire and assembly applications. Match the wire diameter, open dimensions and closing tool to your workpiece.
Series
C-17, C-24, C-43, CL-63, CL-50
Collation
Adhesive-bonded strips
Materials
Zinc-coated wire; stainless steel by specification
C17 / C24 versions
Catalog and earlier tool-reference versions are listed separately
Selection
Match open geometry, wire diameter and required closure
Availability, material grade, finish and tool compatibility will be checked for the requested configuration and stated in your quotation.
CATALOG REFERENCE DIMENSIONS
Sizes and series
Source-confirmed nominal inch labels are shown where documented. Unverified dimensions remain in the source unit; listed references do not imply every size combination is available.
C Series and CL Series Hog Rings · catalog reference sizes
Reference
Crown (mm)
Height (mm)
Wire Ø (mm)
C-17
17 mm
9 mm
1.6 mm
C-24
24 mm
12 mm
1.8 mm
C-43
43 mm
20 mm
2 mm
CL-63
63 mm
27.5 mm
2 mm
CL-50
45 mm
23 mm
3 mm
On smaller screens, swipe the table to see every column. Confirm the final drawing, tolerances and packaging before ordering.
For CL-50, the reference table lists a 45 mm crown. Confirm the drawing before ordering; the model number is not a dimension.
Specification notes for ordering
C24: the earlier listing uses 1.60 mm wire; the catalog uses 1.8 mm. C17: the earlier listing uses 16.9 × 8.7 mm; the catalog uses 17 × 9 mm. Specify the intended configuration rather than assuming interchangeability.
DEFINE THE ORDER, NOT JUST THE FASTENER
Packing, samples and order documentation.
C17 / C24 tool-reference configurations
On smaller screens, swipe the table to see all columns.
Model
Open crown × height
Wire diameter
Tool reference
Application / closed-size range
C24 — 1.60 mm wire
24 × 12 mm
1.60 mm

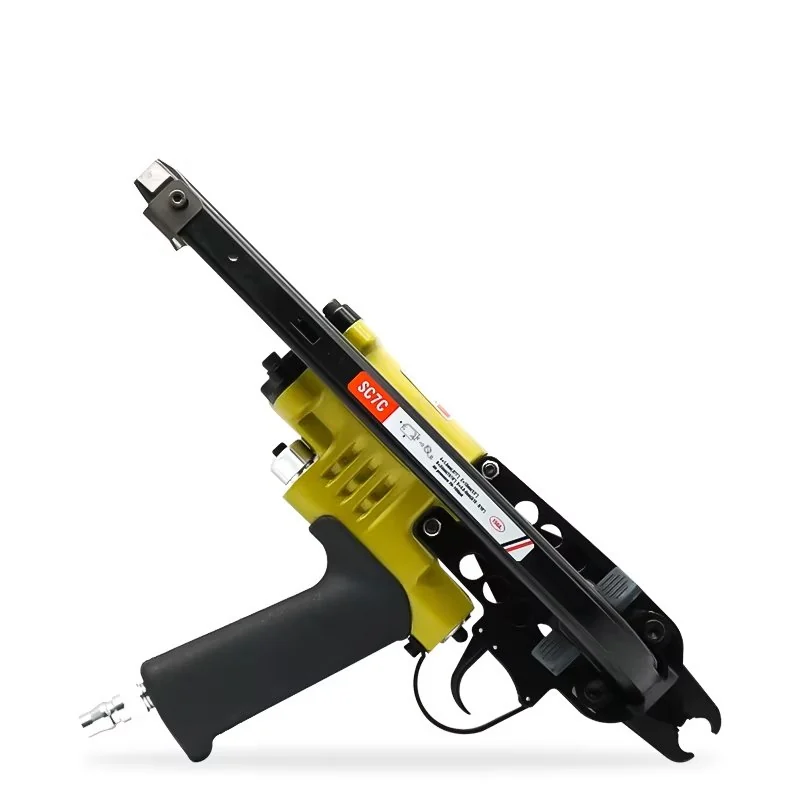

SC7C
4.8–8.0 mm
C24 — 1.60 mm wire
24 × 12 mm
1.60 mm
SC7E
7.8–10 mm
C17 — 1.60 mm wire
16.9 × 8.7 mm
1.60 mm
SC760B
3.2–4.8 mm
These tool references are not a compatibility guarantee for C-24 (1.8 mm wire) or C-17 (17 × 9 mm). Match the actual ring drawing, jaws and tool model.
Catalog carton packing references
On smaller screens, swipe the table to see all columns.
Catalog model
Rings per carton
Source carton weight (kg)
C-17
18,000
7
C-24
10,000
7.5
C-43
10,000
10
CL-63
10,000
15.5
CL-50
10,000
16
The source does not state whether carton weights are net or gross. Confirm pack counts and weight basis for the actual order. These figures belong to the catalog geometries in the main size table.
APPLICATION EXAMPLES
Where it's used
Explore the materials, joints and workshop tasks below. Match the fastener size and tool to your own workpiece before ordering.
Seat-cover listing wire attachment
A closed ring joins the cover listing to its receiving wire without driving into timber.
Mattress border-wire connections
Match the ring closure to the spring and border-wire dimensions of the assembly.
Wire-mesh panel joining
Evaluate the finished ring gap and exposed ends on the actual mesh-panel connection.
AI-generated application illustrations, not customer project photographs.
THE FINISHED JOINT IS THE TARGET
Open ring → tool → closure → connection.
Open crown
Open ring
Closed geometry
Tool dependent
Measurement guide · schematic, not to scale. Refer to the listed dimensions and an approved order drawing.
01
Open geometry
Match the listed open crown and wire diameter.
02
Closing tool
Confirm the exact jaw, magazine and accepted ring series.
03
Closed form
Confirm the required closure with a sample; it is not derived from the open crown.
04
Finished connection
Check grip, clearance, fabric protection and the joined wire or mesh.
Open C-ring detail. Closed geometry depends on the ring and tool combination.
For mesh, bedding and upholstery assembly
Specify the components being joined, their combined thickness and the desired closed joint. A mesh manufacturer and an upholstery assembler may need different clearances even when an open ring has the same nominal size.
Choose for your workpiece and equipment
01
Start with the closed joint
Specify the target closed inside diameter and joined bundle size. An open crown dimension does not describe the final grip.
02
Match the ring tool
Provide the ring designation, wire diameter, strip form and exact jaw or tool model. C17 through larger C and CL references are separate geometries.
03
Inspect a completed connection
Check closure symmetry, loose movement, cut fabric, sharp protrusions and repeatable feeding. Agree any pull or fatigue assessment with your product engineering team.
Questions before you order
Should I order by crown width or closed size?
Provide both. Crown width helps identify the unclosed ring; closed size and the joined materials determine whether the finished connection is appropriate.
Can the rings fasten seat fabric directly to a wooden frame?
They normally close around mating components. Fabric-to-wood attachment usually calls for a suitable upholstery staple and stapler.
Application limits to check
- Hog rings do not replace staples driven into timber.
- Do not select by open width alone or assume all C-type tools share jaws.
